Junction Box

Junction Box

100-7500 INR/Box

Product Details:

  • Product Type Junction Box
  • Material ABS
  • Protection Level IP66
  • Surface Treatment Other
  • Thickness 3.5 mm Millimeter (mm)
  • Dimension(L*W*H) L x W x H/Depth Millimeter (mm)
  • Color RAL 7035 (Light Grey)
  • Supply Ability : 1000 Box Per Day
  • Click to view more
X

Price And Quantity

  • 100-7500 INR/Box
  • 1 Box

Product Specifications

  • IP66
  • L x W x H/Depth Millimeter (mm)
  • Junction Box
  • ABS
  • 3.5 mm Millimeter (mm)
  • Other
  • 1 Year
  • RAL 7035 (Light Grey)

Trade Information

  • Cheque, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD)
  • 1000 Box Per Day
  • 100 Days
  • Yes
  • Corrugated Box
  • All India
  • ISO 9001:2015 , CE, ROHS, UL Certified.

Product Description

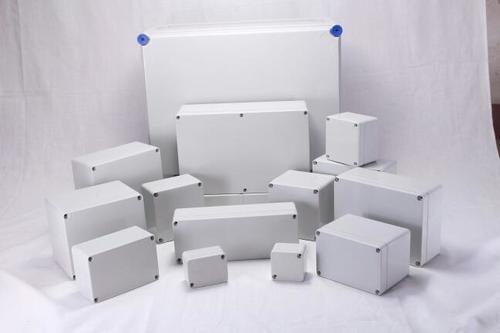

IP65/66 ABS Enclosure (Junction Box)

ABS Enclosure are manufactured using world class injection moulding technology. They are designed to protect all kinds of electronic components in various applications. ABS Enclosure includes 31 sizes. The enclosure can be easily installed and moved. The enclosures are used for terminal substitution rail, push button,eIectronics,communication, fire fighting.defense apparatus, and control panel terminal box. We also meet customized requirements and offer our range at leading prices.

VSM Plast has created a wide range to suit all your needs.

Features of ABS Enclosures:



  • Design covers: Latching, thermoplastic ABS
  • Ingress protection: IP66 / EN 60529
  • Gasket: Silicon molded
  • Fully insulated and various sizes are available



 Technical Specifications:



Protection Spec

IP 65 acc DIN EN 60529/ DIN 40050.

Material

ABS(UV Resistance)

Rubber seal

Foamed Neoprene Seal

Color

Light Gray (RAL 7035) (Special colors on request)

Installation temperature

-5oC to 80oC

Temperature Resistance

max 100oC 60695 10-2

Sr.no

Product

 Size(LxWxH/Depth)

Sr.no

Product

 Size(LxWxH/Depth)

1

VS-553 AS

50x52x35 mm

36

VS-101570 AS

100x150x70  mm

2

VS-563 AS

50x65x35 mm

37

VS-121455 AS

120x140x55 mm

3

VS-805635 AS

80x56x35 mm

38

VS-121470 AS

120x140x70 mm

4

VS-805655 AS

80x56x55 mm

39

VS-121410 AS

120x140x100 mm

5

VS-808240 AS

80x82x40 mm

40

VS-127 AS

120x200x75 mm

6

VS-808245 AS

80x82x45 mm

41

VS-129 AS

120x200x90 mm

7

VS-808250 AS

80x82x50 mm

42

VS-121750 AS

125x170x50 mm

8

VS-885 AS

80x82x55 mm

43

VS-121765 AS

125x170x65 mm

9

VS-808280 AS

80x82x80 mm

44

VS-121785 AS

125x170x85 mm

10

VS-888 AS

80x82x85 mm

45

VS-121710 AS

125x170x100 mm

11

VS-501035 AS

50x100x35 mm

46

VS-151575 AS

150x150x75 mm

12

VS-501060 AS

50x100x60 mm

47

VS-151510 AS

150x150x100 mm

13

VS-801235 AS

80x120x35 mm

48

VS-181860 AS

180x180x60 mm

14

VS-815 AS

80x120x55 mm

49

VS-181875 AS

180x180x75 mm

15

VS-818 AS

80x120x85 mm

50

VS-181810 AS

180x180x100 mm

16

VS-901365 AS

90x130x65 mm

51

VS-181811 AS

180x180x115 mm

17

VS-80165 AS

80x160x55 mm

52

VS-212160 AS

210x210x60 mm

18

VS-801670 AS

80x160x70 mm

53

VS-212185 AS

210x210x85 mm

19

VS-801685 AS

80x160x85 mm

54

VS-212175 AS

210x210x75 mm

20

VS-801610 AS

80x160x100 mm

55

VS-212110 AS

210x210x100 mm

21

VS-801855 AS

80x180x55 mm

56

VS-142260 AS

140x225x60 mm

22

VS-801870 AS

80x180x70 mm

57

VS-142275 AS

140x225x75 mm

23

VS-801885 AS

80x180x85 mm

58

VS-142290 AS

140x225x90 mm

24

VS-801810 AS

80x180x100 mm

59

VS-142210 AS

140x225x105 mm

25

VS-80215 AS

80x210x55 mm

60

VS-1259 AS

160x250x90 mm

26

VS-802360 AS

80x230x60 mm

61

VS-12515 AS

160x250x115 mm

27

VS-802385 AS

80x230x85 mm

62

VS-192813 AS

190x280x130 mm

28

VS-802375 AS

80x230x75 mm

63

VS-253085 AS

250x300x85 mm

29

VS-802310 AS

80x230x100 mm

64

VS-253011 AS

250x300x110 mm

30

VS-101040 AS

100x100x40 mm

65

VS-253015 AS

250x300x150 mm

31

VS-101060 AS

100x100x60 mm

66

VS-282813 AS

280x280x130 mm

32

VS-101080 AS

100x100x80 mm

67

VS-253017 AS

250x300x170 mm

33

VS-101010 AS

100x100x100 mm

68

VS-304014 AS

300x400x140 mm

34

VS-117 AS

122x125x75 mm

69

VS-304019 AS

300x400x190 mm

35

VS-101550 AS

100x150x50 mm

70

VS-304022 AS

300x400x220 mm


VSM PLAST
